13 Mar

Types of Cylinder Liners

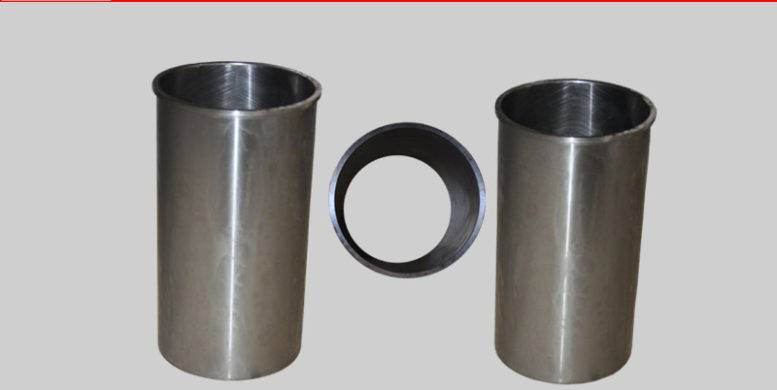

A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine.
This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.These are main functions of Cylinder Liners.

Cylinder liners are the interior metal components within the piston that protect it from the wear and tear of the operation of the motor. Three basic types of liners are used: hot, dry and finned. The purpose of each type is to protect the piston from heat and impurities using slightly different methods. Cylinder liners are expensive, precisely manufactured products and are primarily purchased from specialty shops.

A cylinder wall in an engine is under high temperature and high pressure, with the piston and piston rings sliding at high speeds. In particular, since longer service life is required of engines for trucks and buses, cast iron cylinders that have excellent wear-resistant properties are only used for cylinder parts.

Also, with the recent trend of lighter engines, materials for engine blocks have been shifting from cast iron to aluminum alloys. However, as the sliding surface for the inner cylinder, the direct sliding motion of aluminum alloys has drawbacks in deformation during operation and wear-resistance. For that reason, cast iron cylinder liners are used in most cases.

Dry Cylinder Liners

Dry cylinder liners are among the basic piston protectors. They must withstand extremely high temperatures and guard against impurities, so they are constructed of high-grade materials, such as cast iron and ceramic-nickle plating. Dry liners are much thinner than their counterpart, wet liners. They do not interact with the engine coolant but instead provide a very close fit with the jacket in the cylinder block to protect the piston from heat and impurities.

Wet Cylinder Liners

Wet cylinder liners protect the pistons in a different way than dry ones, but they are made from the same hardy material. They come in direct contact with the engine coolant. Sometimes the wet cylinder liners are fitted with tiny openings to help disperse the heat and impurities. These types of liners are called water-jacket liners but are simply another type of wet cylinder liner. If the liner doesn’t have a cooling jacket, one is created by the liner by interacting with the jacket present in the cylinder block.

Finned Cylinder Liners

Finned cylinder liners are constructed of the same type of heat and impurity-resistant metal. This type of liner is designed for the air-cooled engine, and in operation works much like the dry cylinder liner in that the cooling medium for the motor is air. However, these liners are fitted with tiny fins which allow the inflowing air to draw with great force around the cylinder to provide cooling.

26 Aug

At Jaidarshan We Nature Excellence

Welcome To Jaidarshan Indocraft Pvt. Ltd.



blogpsd-copy



Jaidarshan believes in delivering not only the best but also offering a wide range to its clients. It manufactures and exports a massive
range of centrifugally cast cylinder liners and sleeves for car, heavy commercial vehicles, light commercial vehicles, tractors and com

Three types of brief introduction of cylinder liner



Dry cylinder sleeve piston protector is one of the basic. They must be able to withstand high temperature, to prevent impurities, so they were built in high-grade materials, such as iron and ceramic nickel plating. Dry liner than their opponents, wet lining much thinner. They do not interact with the engine cooling water, but with the jacket very closely matched in the cylinder body, the piston to protect from heat and impurities.
Wet Cylinder Liner protection in a different way than the piston, but they consist of the same cold material. They are in direct contact with the engine cooling water. Sometimes, wet Cylinder Liner with a small opening, to help disperse the heat and impurities. These types of lining called jacket lining, but just another type of wet Cylinder Liner. If the lining does not have the cooling sleeve, 1 is composed of liner created by and in the cylinder body jacket interaction.
Heat and impurity finned cylinder sleeve structure of the same type of metal resistant. This type of liner is designed for air-cooled engine, and the operation is very like a dry Cylinder Liner, the air cooling medium motor. However, these lining are equipped with fin tiny, allowed to flow into the air and the cylinder around the great pressure plotted to provide cooling.

How Cylinder Liner Lubrication Perform Inside Engine?



Piston moves to and fro inside a cylinder and engineers have employed many piston rings inside the grooves on the piston that perform several tasks, including pressure sealing inside the combustion chamber. The speed of rubbing (friction) between the cylinder liner and piston rings is high. Other than this, there are extreme temperature conditions, pressure, and corrosive gases within the combustion chamber to which any lubricating oil between the piston and the liner would be used to.

Jaidarshan Indocraft Pvt. Ltd is equipped with several components that are in relative motion that can be different kinds- sliding, rotary, or oscillatory. Lubrication is a critical step to make the performance of the device smoother and prevent wearing of the components and damage.

Jaidarshan Indocraft Pvt. Ltd Also Manufactures of



Automobile Liners , Refrigeration Liners , Air/Water cooled blocks



For more information visit our site  http://www.engineliner.com/

Source URL : http://www.engineliner.com/blog/

24 Aug

Information About Automobile Cylinder Liner & Sleeves

blogpsd-copy



A cylinder liner is the cylindrical part well fitted in engine blocks through the creation cylinders. It is amongst most basic useful parts to compose interiors of engines. This is known as the cylinder liner though some countries know that as cylinder sleeve.

The auto liner sleeves provide as the interior wall for cylinders kinds down surface the piston rings while retaining the lubricants within Majority of significant functions of cylinder liner is magnificent attribute like descending surface with some important points.

The auto liner sleeves get fire heating using piston rings, piston, and spreads heating to coolant. The cylinder liners stop solid gas and also combustion gas using on the run from the outside. It is necessary that cylinder liners which are very hard for converting thorough better load and also superior fever within the cylinder.

Cylinder walls within engine are under tall temperature as well as pressure, providing piston and also piston rings with gliding at superior speeds. mostly, as the longer service life may be required of engines for the trucks as well as, level cylinders that have wonderful testing properties can be used for cylinder parts.

Different sleeves manufacturers provide premium services as well as products to the important clients. Their continuous hard work for manufacturing beautiful cylinder sleeves support them like top exporters for the auto sleeves. Also they guarantee they gather all the requirements of the clients and to do that their modified range assist them in making the clients please to optimum. They might not think that cooperation in all the requirements is good for your business. And for that reason, their experts allow them of having future clients to offer their personally made designs that can be easily accessible for the applications.

Some of the home facilities add in foundry shop, machine shop, inspection, and packing division.

The manufacturing facilities incorporate CNC Machining, Grinding, Horning Machine, and S.P.M. Turning.

Other Important aspect of Automobile Liner Manufacturers

  • 100% dimensional examination in procedure and completed components
  • Broad range of models proper for worldwide trucks, cars, tractors as well as industrial engines
  • Casual inspection for honing angle as well as surface and structure roughness
  • Casual periodic tests for profiles, crack detection, and tensile strength
  • Higher profile Cylindrical Grinding and table Honing for matching geometrical parameters
  • Innovative features centrifugally cylinder liner has particular machining
  • Manufactured from BS4K6 standard material having nickel and chromium elements
  • Stringent Material as well as micro-structure analysis for every batch
  • Years of experience as well as expertise having manufacturing outlet under one roof



Source URL : http://www.engineliner.com/blog/2016/08/24/information-about-automobile-cylinder-liner-sleeves/

24 Aug

Cylinder Liners

4

A cylinder liner is critical part of any ignition engine. If your cylinder liners become damaged you most certainly need to have them fixed or you’ll get stuck without a working marine diesel engine and be left a-drift at sea if your not carefully!

Cylinder Liner  / Cylinder Sleeve

These Cylinder liners are a ‘cylindrical component’, which is fitted into an engine block to form a cylinder. These cylinders are one of, if not the most important and functional part which makes-up the inner workings of a marine diesel engine – (Cylinder liners some times refered to as a “Cylinder sleeve”).

Cylinder Liners

Jaidarshan  Indocraft Pvt. Ltd. can fix cylinder liners on ANY kind of marine diesel engine. With our custom made machining tools specifically designed for cylinder liner your problem is no-problem for Jaidarshan Indocraft. Our speciality service means you can relax with peace of mind as we take care of every aspect of  from emergeny recovery of your marine vessle, to on-site rebuild of your cylinder liner. If major works are required where it is not possible to rebuild on-site we will arrange transport of your vessle to a nearby facility where these works can be carried out and ensure your back on course as soon as possible.

Cylinder liners are also known as sleeves by many in the industry. A cylinder liner is basically a hollow shell that works as an enclosure during combustion of an engine. Although, cylinder liners are hollow but they are very robust in nature to withstand the huge fluid pressure in a successful manner.  The temperature difference between the inner and outer temperature of these cylinder liners vary greatly and this result in a great thermal stress that eventually these have to bear. There are now many Indian auto part exporters that are now exporting these liners also in the overseas market.

Source URL : http://www.engineliner.com/blog/2016/08/24/cylinder-liners/

24 Aug

Automobile Parts Businesses In India Growing- What’s The Reason Behind It?

Automobile Parts Businesses In India Growing- What’s The Reason Behind It?



3

Indian automobile parts market is getting strong each day; annual survey report claims the fact is true. The push in the automotive spare parts business is expected to rise with vehicles demand and sale. As most of the dealers ramp up their inventories of vehicles, they should seek for extra parts to service those automotives. Still some of the small scale businesses look after the ways to enhance their product sales and business growth. In this post, experts will going to share some tricks to grow automotive spare parts business in India.

Source URL : http://www.engineliner.com/blog/2016/08/24/automobile-parts-businesses-in-india-growing-whats-the-reason-behind-it/

24 Aug

Air Cooled Cylinder Liner- The Engine Performance Enhancer

Air Cooled Cylinder Liner- The Engine Performance Enhancer

The importance of Air Cooled Cylinder liner can be seen mostly in the automobile industry where the demand comes in bulk. There are numerous companies who deal with the manufacturing of such a product in the global market. The availability of such type of liners varies in assorted sizes and dimensions which can also be tailor made as per the requirements of the customers. The liners are known for having the ability of centrifugally compelling the impurities to the bore surface from where these are removed with the support of different machining processes.



1

Air Cooled Cylinder Liner

The offered range exhibits excellent efficiency in terms of functionality and performance. The air cooled cylinder liner is precision made to serve the desired requirements which are as per the engine specifications.

Salient features:
• Optimum performance
• Wear and tear resistance
• Tough construction
• Corrosion resistant
• Minimal maintenance
• High durability
• Affordable price

The Auto Parts manufacturing process basically consists of the liners being centrifugally cast. These products are manufactured for various engine requirements in the international market which are in accordance with stringent quality standards. The production is carried out keeping into consideration the need to have strict tolerances for such products which ensures that the liners are optimally fitted within the engine block. The additional quality features of such air cooled cylinder liner are the material used, the structure defined for various engine purposes and the surface quality. To attain a specific dimension as per requirement, the composition of the melt, the machining process and the treatment of the melt are determined in close coordination with the engine manufacturers.The Auto Parts Manufacturing processes are comprehended with the most advanced technological work benches and tools.

By amalgamating different grades of metal with chromium and nickel makes this type of cylinder liner corrosion resistant. Stringent micro structure and material are made to be analyzed to attain the highest quality standards and comply with the international specifications. The sensitive controlled machines are utilized to test the product to avoid any flaw in them. To suit the engine specification, The Auto Parts Manufacturing companies take utmost steps to deliver the air cooled cylinder liner products as per the original specifications, metallurgical as well as dimensionally

Source URL : http://www.engineliner.com/blog/2016/08/24/air-cooled-cylinder-liner-the-engine-performance-enhancer/

23 Aug

Are cylinder sleeves bad for your BMW engine?

 Are cylinder sleeves bad for your BMW engine?

2





There seems to be a bit of controversy surrounding cylinder sleeves and BMW engines.  Oil consumption, excessive noise, sleeves dropping, Alusil blocks not liking sleeves – you name it.  I took some time to talk to our machine shop foreman, (the man with 50 years experience) Tony (VAC owner) and our manufacturing partners (Darton and LA Sleeve) about the drawbacks of using sleeves in the S54, S62 and S65 engines.

Short answer:  There are no drawbacks.

Long answer:  I can say with absolute confidence that properly specified sleeves installed properly will work flawlessly and offer more durability than a non sleeved block.  Track builds, street builds, stroker builds, big HP forced induction builds – not a problem.  We have sleeved dozens of  BMW engines in our machine shop and sold 100s of BMW sleeves to machine shops all across the world.  We always have a few shelves full of BMW sleeves ready for shipment.

Some quotes from our partners:
“The only drawbacks we are aware of are poor installation practices.  It’s the primary reason for almost every issue possible.  Let me address that first: by adding a foreign object to the block, which had nothing in it to start with, logic would say the block has been compromised.  That can be true if done incorrectly.

Oil consumption is a myth.  In many cases, oil consumption will increase as a result of sleeves because of an incorrect hone pattern.  But, noise isn’t a myth.  If the sleeves are installed with too much piston to wall clearance, it usually sounds louder during warmup.  It sounds louder as a result of iron lining the cylinders.  Only way to prevent that is to watch the piston to wall clearance during the honing of the sleeves.

Only other issue is the sleeves dropping – It’s rare but possible.  Easily preventable, as long as they’re installed properly.  Only thing that can drop the sleeves, even after perfect installation, is bad aluminum and/or when a block is overheated all while the head has been over-torqued.  What we’ve seen happen when a block is way over torqued, and a customer is paranoid about head gasket seal, they’ve over-torqued their head thinking it will seal water.  So, when the heat expands the block, the block will pull away from the head.  As that happens, the expansion along with the over-torqued head, it will actually push the sleeves down because the sleeves seem to rise at the same time.  Very rare, but again possible.”

For all builds, we take it one step further by using flanged sleeves, built to our exact specs.  These flanges assure that the sleeve will not ‘drop’ under any circumstances.  See pics below.

“When some mechanics or engine builders look at the deck of the S65, they think there’s no room to put sleeves.  Although the S65 does not have thick walls in between cylinder bores, it does have one good quality – hard aluminum.  If the sleeves are installed properly, the block looses no structural integrity.  Meaning, the performance sleeves are quite thin, but radically stronger than the S65 aluminum. Therefore, by installing the thin wall sleeves properly, the great S65 block is now much more receptive to higher volumes of boost than the S65 alloy can handle.  By simply lining the block with the thin wall, centrifugally spun-cast ductile iron sleeves, the cylinder bores can handle 50% to 70% more boost than that of the Alusil aluminum bore block.

The boost can care less what pistons it runs with in most cases.  It’s the cylinder block walls that are compromised first, not pistons.  If the S65 block aluminum is poor, it will fracture the block well before the pistons fail.  That’s why we like to re-sleeve these alloy blocks ductile iron material.  Not to save the pistons, but so the block can hold compression so the pistons do their job properly.

There are several reasons for using cylinder sleeves. Most commonly they are found in manufactured aluminum blocks because as you know aluminum does not have the wear or sealing properties needed unless it is coated.

In higher performance applications a ductile iron sleeve is preferred since they are at least twice the strength of a standard cast iron sleeve.  If the sleeve is designed properly to fit the block the strength can actually be increased in the bore and ring seal is greater. You will also be able to run any style piston and ring that best suits the application. In some cases sleeved blocks will allow you to achieve a larger bore size or clean-up any damage that may occur. They can also be replaced in most cases.”
